Model

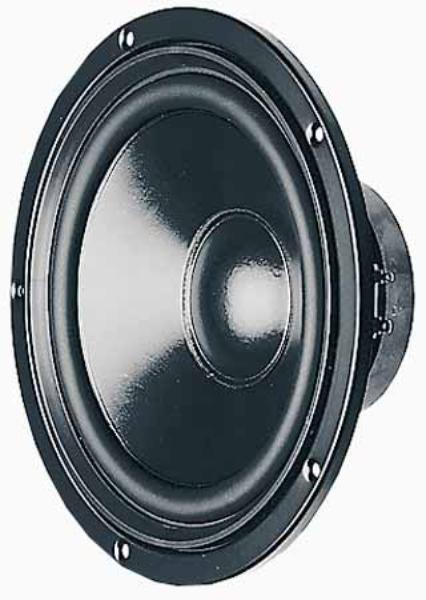

Visaton W200S-4
Rating
DIAM
8"
FS(Hz)
29
VAS(l)
65
QTS
0.35
PWR(W)
150
SPL(dB)
88
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
29
Vas(l)
65
Qts
0.35
Qms
3.99
Qes
0.384
Bl(Tm)
7.7
Mms(gr)
28
Cms(mm/N)
1.076
Rms(kg/s)
1.28
Le(mH)
0
Re(Ohm)
4.5
Sd(sq.mm)
21400
Vd(l)
0.214
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
150
RMS Power(W.)
75
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.4
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
90.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
232
Cutout Diameter (mm)
182
Mounting Depth (mm)
88
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
