Model

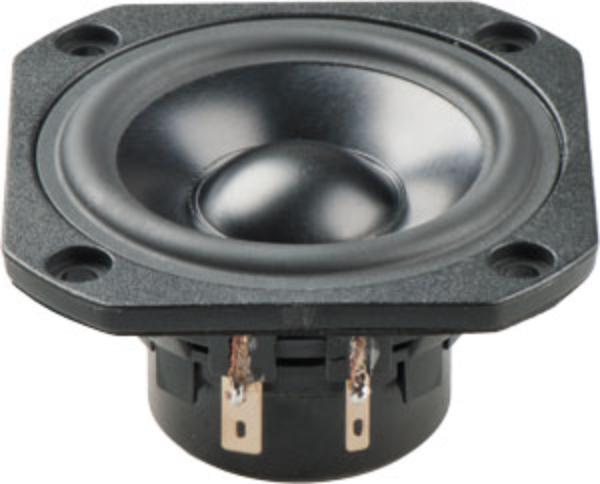

Wavecor FR070WA01
Rating
DIAM
3"
FS(Hz)
121
VAS(l)
0.5
QTS
0.56
PWR(W)
0
SPL(dB)
84
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
121
Vas(l)
0.5
Qts
0.56
Qms
12.6
Qes
0.586
Bl(Tm)
3
Mms(gr)
2
Cms(mm/N)
0.865
Rms(kg/s)
0.121
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
2100
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
0
RMS Power(W.)
0
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.16
Sensitivity(dB) 1-W
84
Sensitivity(dB) 2.8-V
87.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
70
Cutout Diameter (mm)
62
Mounting Depth (mm)
35
Magnet Diameter (mm)
37
Optimum Enclosures
Enclosures
Vented, BP6
