Model

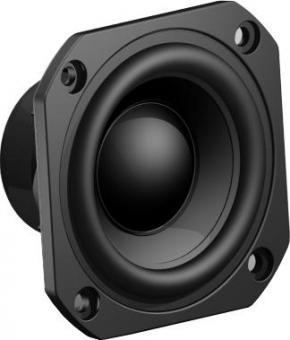

Wavecor SW070WA02
Rating
DIAM
3"
FS(Hz)
112
VAS(l)
0.4
QTS
0.66
PWR(W)
20
SPL(dB)
80.5
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
112
Vas(l)
0.4
Qts
0.66
Qms
7
Qes
0.72
Bl(Tm)
4.7
Mms(gr)
4
Cms(mm/N)
0.55
Rms(kg/s)
0.37
Le(mH)
0.3
Re(Ohm)
6.1
Sd(sq.mm)
2200
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
20
RMS Power(W.)
10
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.07
Sensitivity(dB) 1-W
80.5
Sensitivity(dB) 2.8-V
81.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
83
Cutout Diameter (mm)
63
Mounting Depth (mm)
34
Magnet Diameter (mm)
38
Optimum Enclosures
Enclosures
Vented, BP6
