Model

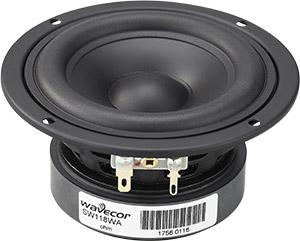

Wavecor SW118WA01
Rating
DIAM
4"
FS(Hz)
58
VAS(l)
3.3
QTS
0.39
PWR(W)
80
SPL(dB)
83.8
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
58
Vas(l)
3.3
Qts
0.39
Qms
8.4
Qes
0.41
Bl(Tm)
4.7
Mms(gr)
8
Cms(mm/N)
0.97
Rms(kg/s)
0.34
Le(mH)
0.48
Re(Ohm)
3.2
Sd(sq.mm)
4900
Vd(l)
0.02
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
4
Max Power(W.)
80
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.15
Sensitivity(dB) 1-W
83.8
Sensitivity(dB) 2.8-V
87.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
118
Cutout Diameter (mm)
93
Mounting Depth (mm)
59
Magnet Diameter (mm)
80
Optimum Enclosures
Enclosures
Vented, BP6
