Model

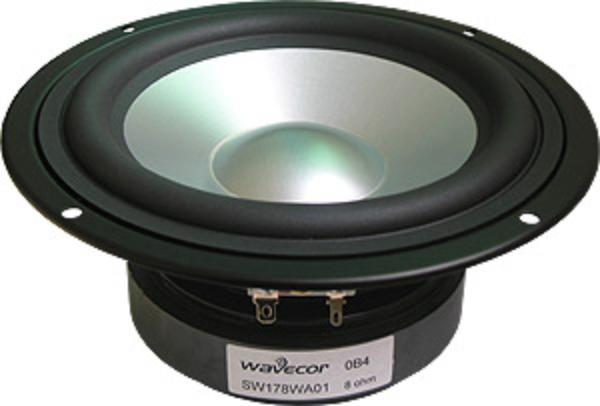

Wavecor SW178WA01
Rating
DIAM
7"
FS(Hz)
36
VAS(l)
13.6
QTS
0.35
PWR(W)
200
SPL(dB)
84.4
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
36
Vas(l)
13.6
Qts
0.346
Qms
18.4
Qes
0.353
Bl(Tm)
12
Mms(gr)
35
Cms(mm/N)
0.558
Rms(kg/s)
0.43
Le(mH)
2.2
Re(Ohm)
6.3
Sd(sq.mm)
13109
Vd(l)
0.066
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
200
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.17
Sensitivity(dB) 1-W
84.4
Sensitivity(dB) 2.8-V
85.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
178
Cutout Diameter (mm)
142
Mounting Depth (mm)
73
Magnet Diameter (mm)
110
Optimum Enclosures
Enclosures
Vented, BP6
