Model

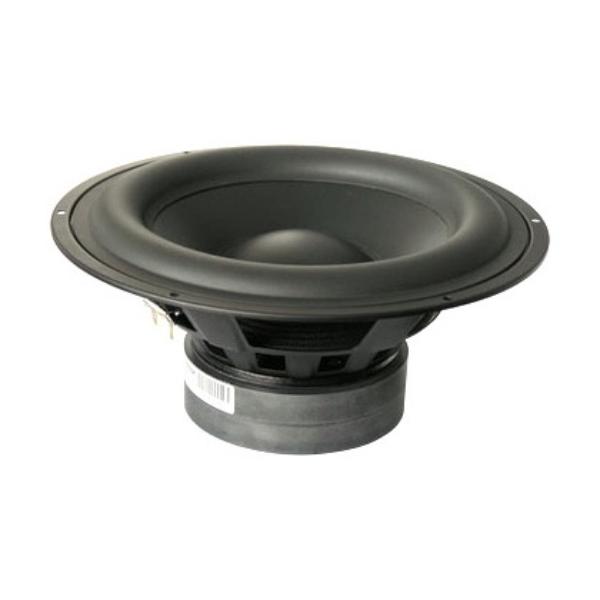

Wavecor SW270WA01
Rating
DIAM
10"
FS(Hz)
28
VAS(l)
51
QTS
0.49
PWR(W)
300
SPL(dB)
85.1
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
28
Vas(l)
51
Qts
0.49
Qms
8.1
Qes
0.53
Bl(Tm)
9.7
Mms(gr)
88
Cms(mm/N)
0.37
Rms(kg/s)
1.911
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
31200
Vd(l)
0.343
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
85.1
Sensitivity(dB) 2.8-V
89.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
270
Cutout Diameter (mm)
228
Mounting Depth (mm)
119
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
