Model

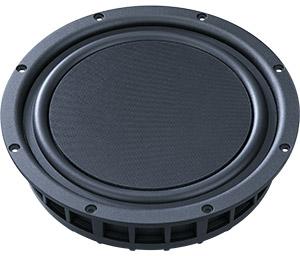

Wavecor SW280WA01
Rating
DIAM
11"
FS(Hz)
26
VAS(l)
43
QTS
0.4
PWR(W)
400
SPL(dB)
84.3
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
26
Vas(l)
43
Qts
0.4
Qms
6
Qes
0.43
Bl(Tm)
13.4
Mms(gr)
138
Cms(mm/N)
0.272
Rms(kg/s)
3.76
Le(mH)
1.4
Re(Ohm)
3.4
Sd(sq.mm)
33387
Vd(l)
0.2
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
11
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.17
Sensitivity(dB) 1-W
84.3
Sensitivity(dB) 2.8-V
88
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
280
Cutout Diameter (mm)
254
Mounting Depth (mm)
71
Magnet Diameter (mm)
254
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
