Model

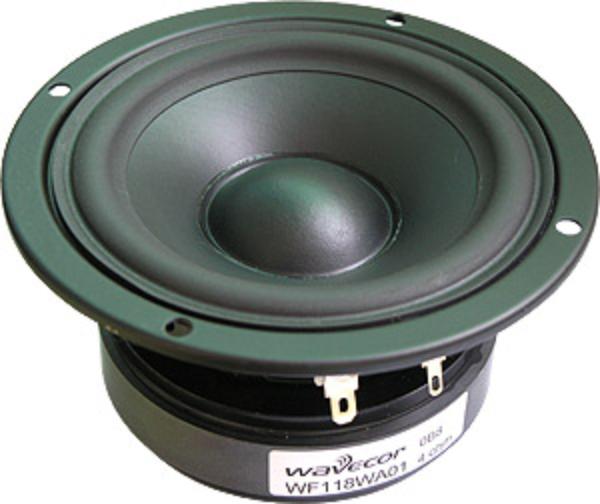

Wavecor WF118WA01-4
Rating
DIAM
4"
FS(Hz)
64
VAS(l)
4.3
QTS
0.36
PWR(W)
100
SPL(dB)
86.6
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
64
Vas(l)
4.3
Qts
0.36
Qms
8.8
Qes
0.38
Bl(Tm)
4.6
Mms(gr)
6
Cms(mm/N)
1
Rms(kg/s)
0.28
Le(mH)
0.12
Re(Ohm)
3.2
Sd(sq.mm)
5500
Vd(l)
0.017
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
4
Max Power(W.)
100
RMS Power(W.)
50
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.29
Sensitivity(dB) 1-W
86.6
Sensitivity(dB) 2.8-V
90.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
118
Cutout Diameter (mm)
92
Mounting Depth (mm)
57
Magnet Diameter (mm)
85
Optimum Enclosures
Enclosures
Vented, BP6
