Model

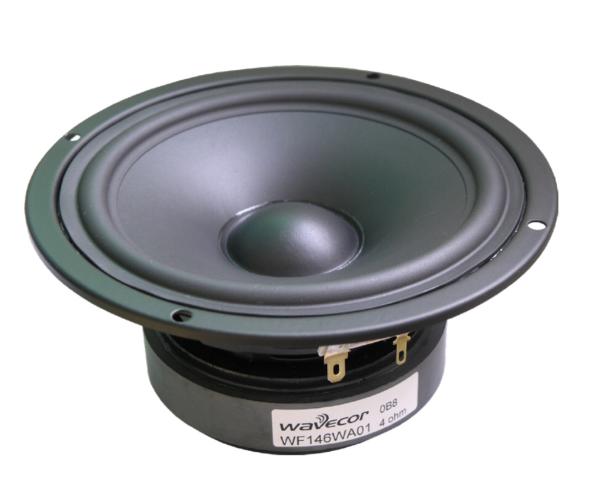

Wavecor WF146WA01
Rating
DIAM
5"
FS(Hz)
56
VAS(l)
10
QTS
0.42
PWR(W)
100
SPL(dB)
87.8
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
56
Vas(l)
10
Qts
0.42
Qms
7
Qes
0.45
Bl(Tm)
5.1
Mms(gr)
10
Cms(mm/N)
0.78
Rms(kg/s)
0.52
Le(mH)
0.24
Re(Ohm)
3.2
Sd(sq.mm)
9500
Vd(l)
0.028
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
100
RMS Power(W.)
55
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.38
Sensitivity(dB) 1-W
87.8
Sensitivity(dB) 2.8-V
91.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
146
Cutout Diameter (mm)
118
Mounting Depth (mm)
65
Magnet Diameter (mm)
90
Optimum Enclosures
Enclosures
Vented, BP6
