Model

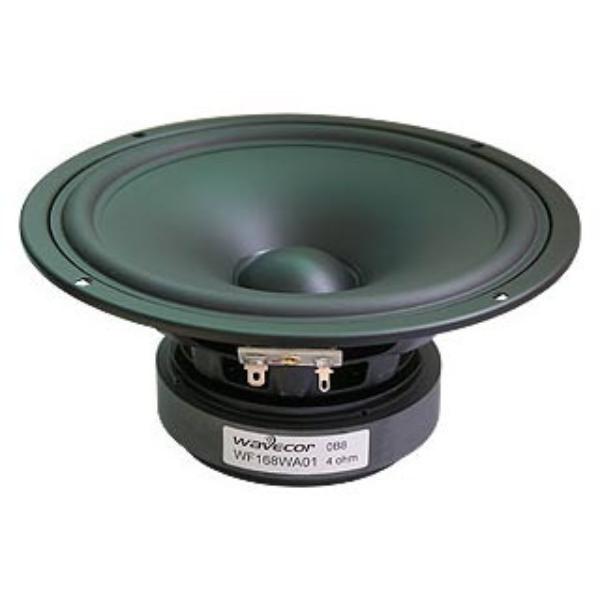

Wavecor WF168WA01-01
Rating
DIAM
6"
FS(Hz)
47.5
VAS(l)
25
QTS
0.43
PWR(W)
120
SPL(dB)
89.5
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
47.5
Vas(l)
25
Qts
0.43
Qms
7
Qes
0.46
Bl(Tm)
5.2
Mms(gr)
13
Cms(mm/N)
0.898
Rms(kg/s)
0.533
Le(mH)
0.24
Re(Ohm)
3.3
Sd(sq.mm)
13900
Vd(l)
0.042
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
120
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.56
Sensitivity(dB) 1-W
89.5
Sensitivity(dB) 2.8-V
93.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
168
Cutout Diameter (mm)
143
Mounting Depth (mm)
73
Magnet Diameter (mm)
90
Optimum Enclosures
Enclosures
Vented, BP6
