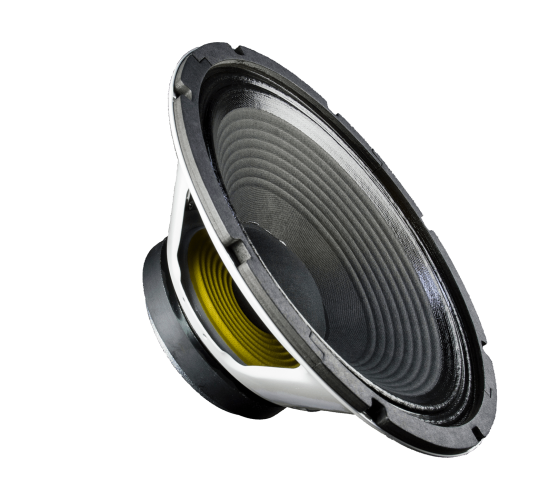

Model
WGS ET65
Rating
DIAM
12"
FS(Hz)
98.7
VAS(l)
16.8
QTS
0.91
PWR(W)
130
SPL(dB)
93.5
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
98.7
Vas(l)
16.8
Qts
0.913
Qms
5.38
Qes
1.1
Bl(Tm)
11.5
Mms(gr)
29
Cms(mm/N)
0.09
Rms(kg/s)
3.331
Le(mH)
0
Re(Ohm)
8.1
Sd(sq.mm)
36610
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
130
RMS Power(W.)
65
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
93.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
