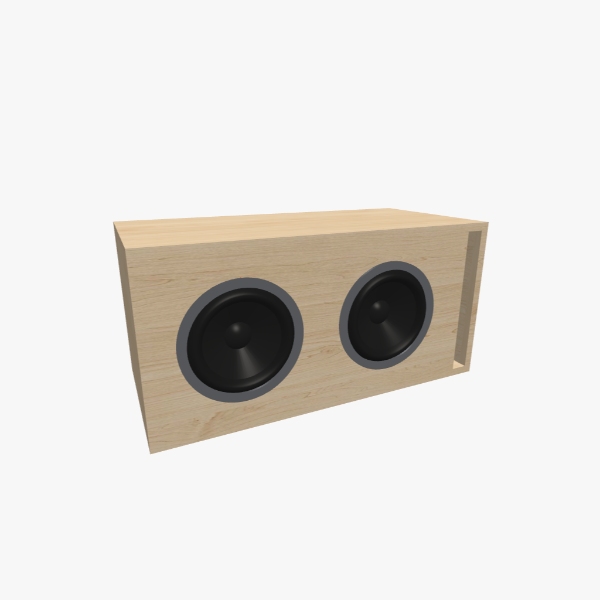

Dual 8-inch Round Subwoofer Vented / Bass-Reflex Enclosure - 50 L / 32 Hz
Description
This Vented / Bass-Reflex enclosure is designed for 2-driver 8-inch round subwoofer systems, delivering a balanced performance for both everyday car audio and home stereo applications. The simple rectangle cabinet is constructed from 16 mm (5/8 inch) material with external dimensions of 680 × 330 × 330 mm (26.75 × 13 × 13 in). Featuring a 50 L chamber tuned to 32 Hz, it utilizes a single L-shaped slot port. This port area is specifically optimized for high-output, large-excursion drivers and high-airflow SPL requirements. The design efficiently manages limited trunk space and installation constraints while balancing bass extension, cabinet size, and low distortion.
Volume & tuning
50 l
Internal volume
32 Hz
Tuning frequency
Box properties
Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
681 × 330 × 330
Box dimensions (inch)
26.75 × 13 × 13
Max RMS speaker power up to
350 W
Speaker mounting panel layers
Single
Number of bands
1
Enclosure & speaker
Enclosure
Vented
Speaker configuration
Multi
Number of speakers
2
Speaker size
8"
Port
Port type
Rectangular
Port count
1
Port area (sq.mm)
10377
