Car Audio 2-Driver 12-inch Round Ported Subwoofer Box - 80 L / 32 Hz - 810 × 365 × 365 mm

  1. Ready boxes
  2. Car Audio 2-Driver 12-inch Round Ported Subwoofer Box - 80 L / 32 Hz - 810 × 365 × 365 mm
Use in calculator

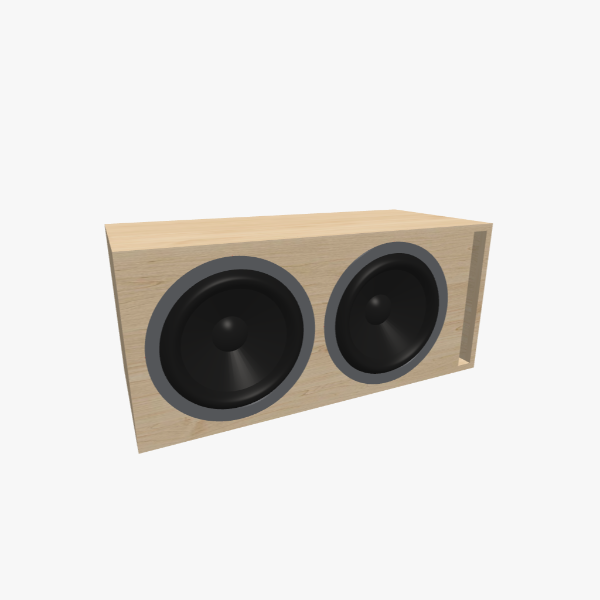

Dual 12-inch round subwoofer vented / bass-reflex enclosure, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior, 810 × 365 × 365 mm (31.84 × 14.41 × 14.41 in).
Dual 12-inch round subwoofer vented / bass-reflex enclosure, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior, 810 × 365 × 365 mm (31.84 × 14.41 × 14.41 in).
Dual 12-inch round subwoofer vented / bass-reflex enclosure, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior, 810 × 365 × 365 mm (31.84 × 14.41 × 14.41 in).
Dual 12-inch round subwoofer vented / bass-reflex enclosure, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior, 810 × 365 × 365 mm (31.84 × 14.41 × 14.41 in).
Dual 12-inch round subwoofer vented / bass-reflex enclosure, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior, 810 × 365 × 365 mm (31.84 × 14.41 × 14.41 in).
Dual 12-inch round subwoofer vented / bass-reflex enclosure, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior, 810 × 365 × 365 mm (31.84 × 14.41 × 14.41 in).
Dual 12-inch round subwoofer vented / bass-reflex enclosure, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior, 810 × 365 × 365 mm (31.84 × 14.41 × 14.41 in).
Dual 12-inch round subwoofer vented / bass-reflex enclosure, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior, 810 × 365 × 365 mm (31.84 × 14.41 × 14.41 in).
Dual 12-inch round subwoofer vented / bass-reflex enclosure, 80 L volume, 32 Hz tuning, L-shaped slot port, disassembled parts, 810 × 365 × 365 mm (31.84 × 14.41 × 14.41 in).

Description

This simple rectangle cabinet, constructed from 16 mm (5/8 inch) material, is specifically designed for a 2-driver 12-inch round subwoofer. Using a Vented / Bass-Reflex design, the enclosure features an 80 L chamber tuned to 32 Hz. It incorporates one L-shaped slot port with an area optimized for high-output drivers requiring increased cone excursion and airflow. The external dimensions are 810 × 365 × 365 mm (31.84 × 14.41 × 14.41 in). This design serves as a general-purpose home subwoofer enclosure for music and stereo systems, balancing bass extension, cabinet size, output, and low distortion. Additionally, it is suitable for everyday car-audio use, accounting for limited trunk space, installation constraints, and balanced sound.

Volume & tuning

80 l
Internal volume
32 Hz
Tuning frequency

Box properties

Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
810 × 366 × 366
Box dimensions (inch)
31.84 × 14.41 × 14.41
Max RMS speaker power up to
60 W
Speaker mounting panel layers
Single
Number of bands
1

Enclosure & speaker

Enclosure
Vented
Speaker configuration
Multi
Number of speakers
2
Speaker size
12"

Port

Port type
Rectangular
Port count
1
Port area (sq.mm)
13134
Appearances
View all
Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port featuring a light oak front panel, solid exterior

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port featuring a raw unfinished cherry wood front panel, solid exterior

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port and 12 mm rounded front edges, solid exterior

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port and 12 mm front panel chamfer, solid exterior

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.
