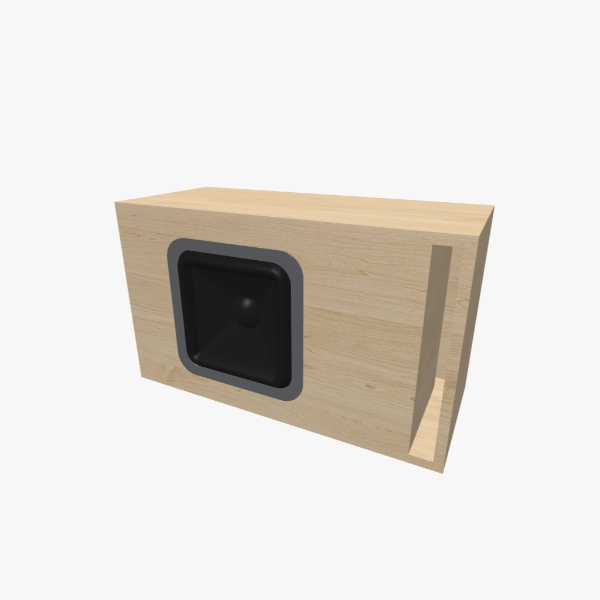

Single 10-inch Rectangular Vented / Bass-Reflex Subwoofer Box - 35 L / 38 Hz
Description
This Vented / Bass-Reflex enclosure is designed for a single 10-inch rectangular subwoofer, featuring a 35 L chamber tuned to 38 Hz. The cabinet has a simple rectangle shape constructed from 16 mm (5/8 inch) material with external dimensions of 621 × 367 × 267 mm (24.4 × 14.46 × 10.55 in). Engineered for balanced sound in daily car-audio use with limited trunk space or as a general-purpose home subwoofer, it optimizes the balance between bass extension, cabinet size, output, and low distortion. It utilizes one L-shaped slot port with a port area suitable for high-output, large-excursion drivers and SPL-oriented applications requiring high airflow.
Volume & tuning
35 l
Internal volume
38 Hz
Tuning frequency
Box properties
Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
621 × 367 × 268
Box dimensions (inch)
24.4 × 14.46 × 10.55
Max RMS speaker power up to
350 W
Speaker mounting panel layers
Single
Number of bands
1
Enclosure & speaker
Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
10" Rectangle
Port
Port type
Rectangular
Port count
1
Port area (sq.mm)
12668
