Single 10-inch Vented / Bass-Reflex Subwoofer Box

PRO

Support on Patreon is required to use this template

To use this template, you must be a paid Patreon supporter.

Support the project on Patreon

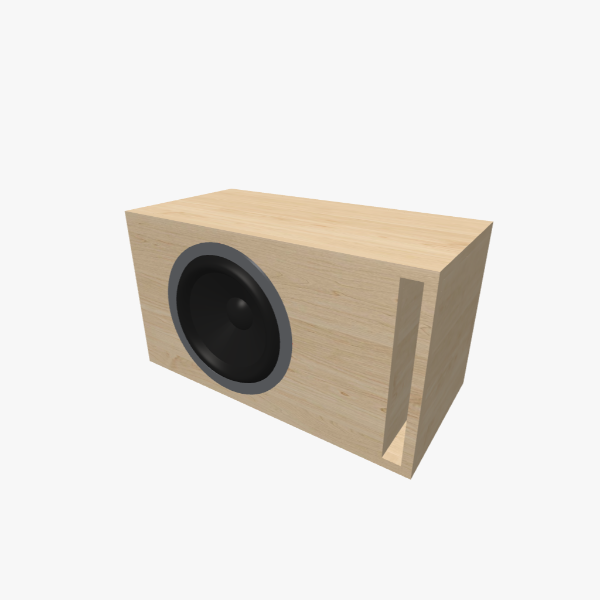

Single 10-inch round vented / bass-reflex subwoofer box, 30 L chamber tuned to 38 Hz with one L-shaped slot port, solid exterior, 559 × 310 × 279 mm (21.99 × 12.22 × 11 in).

Single 10-inch round vented / bass-reflex subwoofer box, 30 L chamber tuned to 38 Hz with one L-shaped slot port, solid exterior, 559 × 310 × 279 mm (21.99 × 12.22 × 11 in).

Single 10-inch round vented / bass-reflex subwoofer box, 30 L chamber tuned to 38 Hz with one L-shaped slot port, solid exterior, 559 × 310 × 279 mm (21.99 × 12.22 × 11 in).

Single 10-inch round vented / bass-reflex subwoofer box, 30 L chamber tuned to 38 Hz with one L-shaped slot port, solid exterior, 559 × 310 × 279 mm (21.99 × 12.22 × 11 in).

Single 10-inch round vented / bass-reflex subwoofer box, 30 L chamber tuned to 38 Hz with one L-shaped slot port, solid exterior, 559 × 310 × 279 mm (21.99 × 12.22 × 11 in).

Single 10-inch round vented / bass-reflex subwoofer box, 30 L chamber tuned to 38 Hz with one L-shaped slot port, disassembled parts, 559 × 310 × 279 mm (21.99 × 12.22 × 11 in).

Description

This Vented / Bass-Reflex enclosure is designed for a single 10-inch round subwoofer, featuring a 30 L chamber tuned to 38 Hz. The cabinet has a simple rectangle shape with external dimensions of 559 × 310 × 279 mm (21.99 × 12.22 × 11 in) and is built from 16 mm (5/8 inch) material. It uses one L-shaped slot port with a port area suitable for high-output drivers with increased cone excursion and airflow demand. One internal brace reinforces the cabinet and reduces panel vibration, making it suitable for high-output subwoofer systems. This design is ideal for everyday car-audio use, considering limited trunk space and installation constraints, as well as a general-purpose home subwoofer for music and stereo systems where it balances bass extension, cabinet size, output, and low distortion.

Volume & tuning

30 l

Internal volume

38 Hz

Tuning frequency

Box properties

Shape

Simple Rectangle

Material thickness (mm)

16

Material thickness (inch)

5/8

Box dimensions (mm)

560 × 311 × 279

Box dimensions (inch)

21.99 × 12.22 × 11

Max RMS speaker power up to

2700 W

Speaker mounting panel layers

Single

Number of bands

1

Enclosure & speaker

Enclosure

Vented

Speaker configuration

Single

Number of speakers

1

Speaker size

10"

Port

Port type

Rectangular

Port count

1

Port area (sq.mm)

8107

Appearances

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a light oak front panel, solid exterior.

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a raw cherry wood front panel, solid exterior.

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with 12 mm rounded front edges, solid exterior.

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a 12 mm front panel chamfer, solid exterior.

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.
