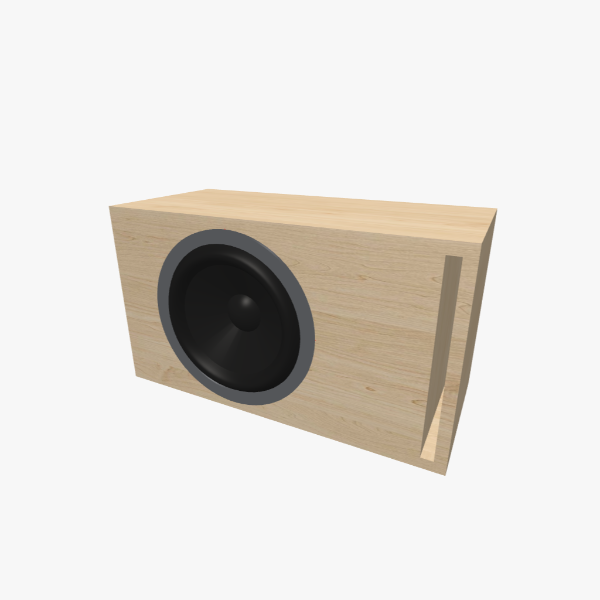

Single 10-inch Vented / Bass-Reflex Subwoofer Box - 25 L / 38 Hz
Description
This Vented / Bass-Reflex enclosure is designed for a single 10-inch round subwoofer, featuring a 25 L chamber tuned to 38 Hz via one L-shaped slot port. Built from 16 mm (5/8 inch) material in a simple rectangle shape, the cabinet measures 529 × 297 × 241 mm (20.78 × 11.73 × 9.5 in). The port area is optimized for drivers with moderate cone excursion and airflow demand. This design serves as a general-purpose home subwoofer enclosure for music and stereo systems, balancing bass extension, cabinet size, output, and low distortion, while also being suitable for everyday car-audio use where trunk space and installation constraints require balanced sound.
Volume & tuning
25 l
Internal volume
38 Hz
Tuning frequency
Box properties
Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
529 × 298 × 241
Box dimensions (inch)
20.78 × 11.73 × 9.5
Max RMS speaker power up to
650 W
Speaker mounting panel layers
Single
Number of bands
1
Enclosure & speaker
Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
10"
Port
Port type
Rectangular
Port count
1
Port area (sq.mm)
4560
