Single 10-inch Vented / Bass-Reflex Subwoofer Box

PRO

Support on Patreon is required to use this template

To use this template, you must be a paid Patreon supporter.

Support the project on Patreon

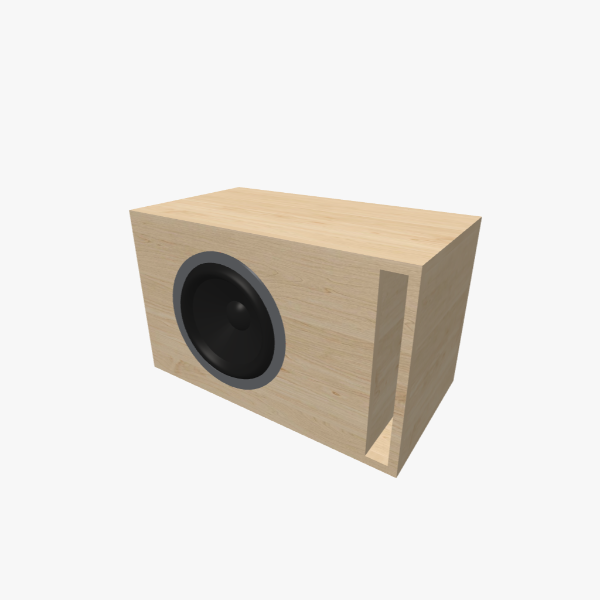

Single 10-inch Vented / Bass-Reflex Subwoofer Box, 35 L chamber tuned to 34 Hz with one L-shaped slot port - solid exterior, 576 × 353 × 318 mm (22.66 × 13.93 × 12.53 in).

Single 10-inch Vented / Bass-Reflex Subwoofer Box, 35 L chamber tuned to 34 Hz with one L-shaped slot port - solid exterior, 576 × 353 × 318 mm (22.66 × 13.93 × 12.53 in).

Single 10-inch Vented / Bass-Reflex Subwoofer Box, 35 L chamber tuned to 34 Hz with one L-shaped slot port - solid exterior, 576 × 353 × 318 mm (22.66 × 13.93 × 12.53 in).

Single 10-inch Vented / Bass-Reflex Subwoofer Box, 35 L chamber tuned to 34 Hz with one L-shaped slot port - solid exterior, 576 × 353 × 318 mm (22.66 × 13.93 × 12.53 in).

Single 10-inch Vented / Bass-Reflex Subwoofer Box, 35 L chamber tuned to 34 Hz with one L-shaped slot port - solid exterior, 576 × 353 × 318 mm (22.66 × 13.93 × 12.53 in).

Single 10-inch Vented / Bass-Reflex Subwoofer Box, 35 L chamber tuned to 34 Hz with one L-shaped slot port - disassembled parts, 576 × 353 × 318 mm (22.66 × 13.93 × 12.53 in).

Description

This Vented / Bass-Reflex enclosure is designed for a single 10-inch round subwoofer, featuring a 35 L chamber tuned to 34 Hz with one L-shaped slot port. The cabinet is a simple rectangle shape built from 16 mm (5/8 inch) material, with external dimensions of 576 × 353 × 318 mm (22.66 × 13.93 × 12.53 in). Its port area is specifically suited for high-output, large-excursion drivers and SPL-oriented use requiring high airflow. One internal brace reinforces the cabinet and reduces panel vibration, making it ideal for high-output systems. This design is perfect for everyday car-audio use where trunk space and installation constraints are factors, and also serves as a general-purpose home subwoofer enclosure that balances bass extension, size, output, and low distortion.

Volume & tuning

35 l

Internal volume

34 Hz

Tuning frequency

Box properties

Shape

Simple Rectangle

Material thickness (mm)

16

Material thickness (inch)

5/8

Box dimensions (mm)

577 × 354 × 318

Box dimensions (inch)

22.66 × 13.93 × 12.53

Max RMS speaker power up to

2500 W

Speaker mounting panel layers

Single

Number of bands

1

Enclosure & speaker

Enclosure

Vented

Speaker configuration

Single

Number of speakers

1

Speaker size

10"

Port

Port type

Rectangular

Port count

1

Port area (sq.mm)

12668

Appearances

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a light oak front panel, solid exterior.

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a raw cherry wood front panel, solid exterior.

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with 12 mm rounded front edges, solid exterior.

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a 12 mm front panel chamfer, solid exterior.

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.
