Single 10-inch Vented / Bass-Reflex Subwoofer Enclosure - 30 L / 35 Hz

  1. Ready boxes
  2. Single 10-inch Vented / Bass-Reflex Subwoofer Enclosure - 30 L / 35 Hz
Use in calculator
PRO

Support on Patreon is required to use this template

To use this template, you must be a paid Patreon supporter.

Support the project on Patreon

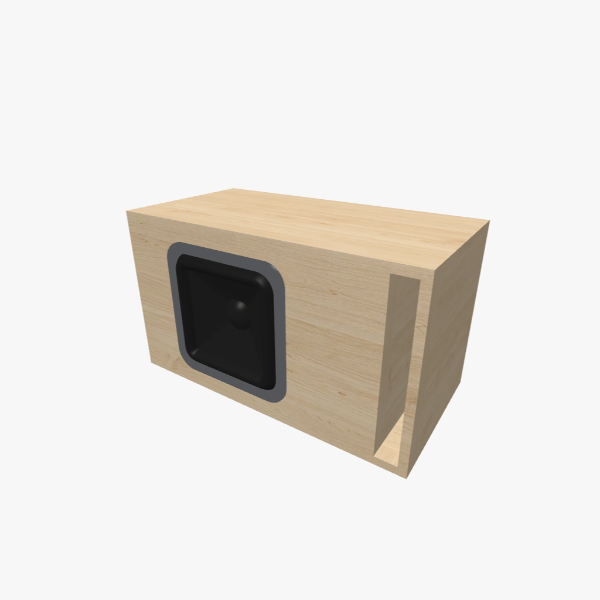

Single 10-inch Vented / Bass-Reflex subwoofer enclosure with 30 L chamber, 35 Hz tuning and one L-shaped slot port; solid exterior, 601 × 343 × 309 mm (23.64 × 13.53 × 12.18 in).
Single 10-inch Vented / Bass-Reflex subwoofer enclosure with 30 L chamber, 35 Hz tuning and one L-shaped slot port; solid exterior, 601 × 343 × 309 mm (23.64 × 13.53 × 12.18 in).
Single 10-inch Vented / Bass-Reflex subwoofer enclosure with 30 L chamber, 35 Hz tuning and one L-shaped slot port; solid exterior, 601 × 343 × 309 mm (23.64 × 13.53 × 12.18 in).
Single 10-inch Vented / Bass-Reflex subwoofer enclosure with 30 L chamber, 35 Hz tuning and one L-shaped slot port; solid exterior, 601 × 343 × 309 mm (23.64 × 13.53 × 12.18 in).
Single 10-inch Vented / Bass-Reflex subwoofer enclosure with 30 L chamber, 35 Hz tuning and one L-shaped slot port; solid exterior, 601 × 343 × 309 mm (23.64 × 13.53 × 12.18 in).
Single 10-inch Vented / Bass-Reflex subwoofer enclosure with 30 L chamber, 35 Hz tuning and one L-shaped slot port; disassembled parts, 601 × 343 × 309 mm (23.64 × 13.53 × 12.18 in).

Description

This Vented / Bass-Reflex enclosure is designed for a single 10-inch rectangular subwoofer, featuring a 30 L chamber tuned to 35 Hz. Built with 16 mm (5/8 inch) material in a simple rectangle shape, the cabinet measures 601 × 343 × 309 mm (23.64 × 13.53 × 12.18 in). Its double-thickness front baffle and one internal brace increase rigidity and reduce panel vibration, making it ideal for high-output systems. The design utilizes one L-shaped slot port with an area optimized for high-output, large-excursion drivers and high-airflow SPL applications. This versatile box balances bass extension, size, and low distortion for both home stereo music systems and everyday car audio use where trunk space and installation constraints are key.

Volume & tuning

30 l
Internal volume
35 Hz
Tuning frequency

Box properties

Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
602 × 344 × 309
Box dimensions (inch)
23.64 × 13.53 × 12.18
Max RMS speaker power up to
7800 W
Speaker mounting panel layers
Double
Number of bands
1

Enclosure & speaker

Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
10" Rectangle

Port

Port type
Rectangular
Port count
1
Port area (sq.mm)
12668
