Model

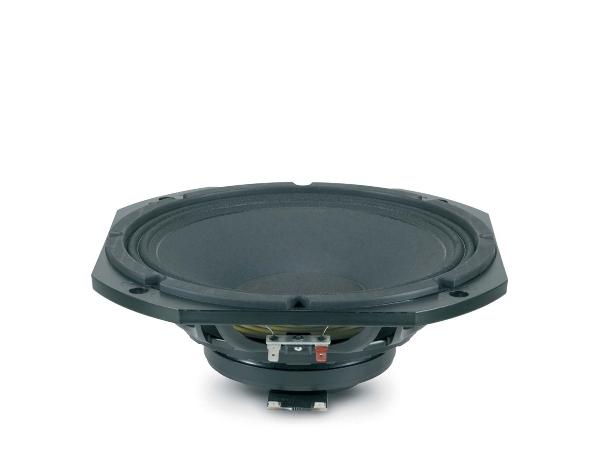

18 Sound 10NDA610
Rating
DIAM
10"
FS(Hz)
89
VAS(l)
18
QTS
0.23
PWR(W)
1200
SPL(dB)
103
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
89
Vas(l)
18
Qts
0.23
Qms
7.1
Qes
0.24
Bl(Tm)
20.3
Mms(gr)
30
Cms(mm/N)
0.107
Rms(kg/s)
2.36
Le(mH)
0
Re(Ohm)
5.5
Sd(sq.mm)
35000
Vd(l)
0.087
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
103
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
96
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
