Model

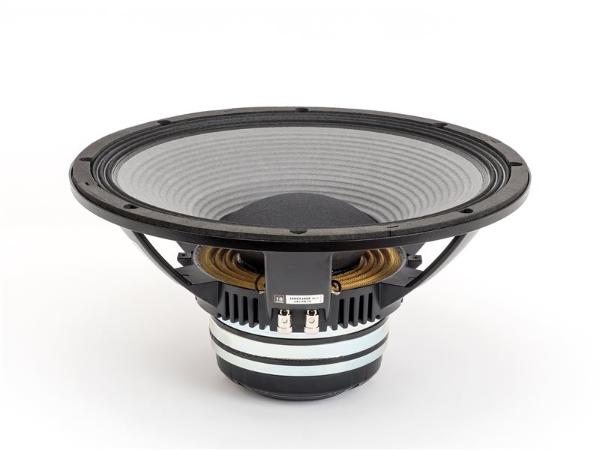

18 Sound 15NCX1000
Rating
DIAM
15"
FS(Hz)
53
VAS(l)
75
QTS
0.31
PWR(W)
3600
SPL(dB)
95
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
53
Vas(l)
75
Qts
0.31
Qms
10.4
Qes
0.32
Bl(Tm)
27.5
Mms(gr)
110
Cms(mm/N)
0.082
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
6.3
Sd(sq.mm)
88100
Vd(l)
0.661
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
3600
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
95
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
353
Mounting Depth (mm)
197
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
