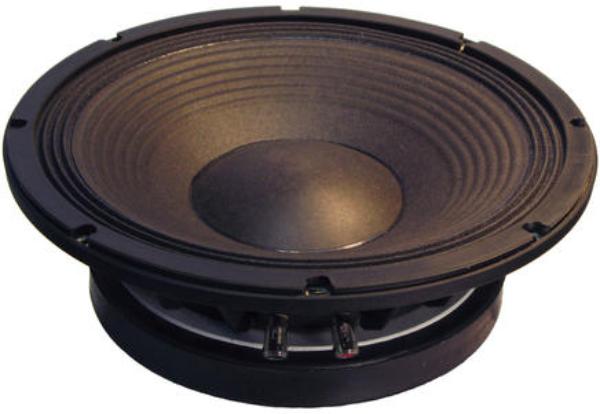

Akton 12W401
Akton 12W401
Model

Akton 12W401

Rating
DIAM
12"
FS(Hz)
39
VAS(l)
79
QTS
0.23
PWR(W)
500
SPL(dB)
94.7
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
39
Vas(l)
79
Qts
0.234
Qms
9
Qes
0.24
Bl(Tm)
23.1
Cms(mm/N)
0.198
Rms(kg/s)
2.29
Le(mH)
2.1
Mms(gr)
84
Vd(l)
0.371
Sd(sq.mm)
53040
X-max(mm)
7
X-mech(mm)
0
Re(Ohm)
6.2

General Parameters

Diameter (inch)
12
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.88
Sensitivity(dB) 1-W
94.7
Sensitivity(dB) 2.8-V
95.9

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
316
Cutout Diameter (mm)
280
Mounting Depth (mm)
116
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
