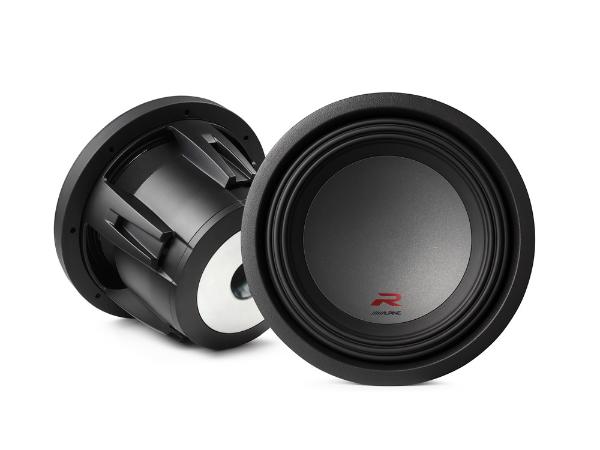

Alpine R-W10D2
Alpine R-W10D2
Model

Alpine R-W10D2

Rating
DIAM
10"
FS(Hz)
30
VAS(l)
21
QTS
0.47
PWR(W)
2250
SPL(dB)
82.4
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
30
Vas(l)
21
Qts
0.47
Qms
8
Qes
0.5
Bl(Tm)
12.3
Cms(mm/N)
0.133
Rms(kg/s)
4.99
Le(mH)
0
Mms(gr)
212
Vd(l)
0.666
Sd(sq.mm)
33297
X-max(mm)
20
X-mech(mm)
35
Re(Ohm)
1.9

General Parameters

Diameter (inch)
10
Max Power(W.)
2250
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.11
Sensitivity(dB) 1-W
82.4
Sensitivity(dB) 2.8-V
88.6

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
272
Cutout Diameter (mm)
231
Mounting Depth (mm)
149
Magnet Diameter (mm)
175

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
