Model

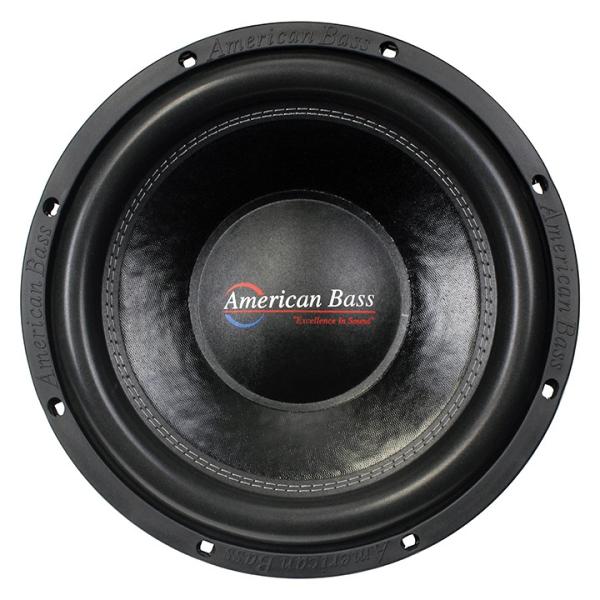

American Bass E1544
Rating
DIAM
15"
FS(Hz)
32.2
VAS(l)
67.3
QTS
0.59
PWR(W)
2400
SPL(dB)
87.1
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32.2
Vas(l)
67.3
Qts
0.594
Qms
4.9
Qes
0.676
Bl(Tm)
13
Mms(gr)
333
Cms(mm/N)
0.073
Rms(kg/s)
13.75
Le(mH)
2.1
Re(Ohm)
1.7
Sd(sq.mm)
80595
Vd(l)
1.128
X-max(mm)
14
X-mech(mm)
31
General Parameters
Diameter (inch)
15
Max Power(W.)
2400
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.32
Sensitivity(dB) 1-W
87.1
Sensitivity(dB) 2.8-V
93.8
Mounting Information
Speaker Displacement (l)
6
Total Diameter (mm)
395
Cutout Diameter (mm)
343
Mounting Depth (mm)
196
Magnet Diameter (mm)
196
Optimum Enclosures
Enclosures
Closed, BP4
