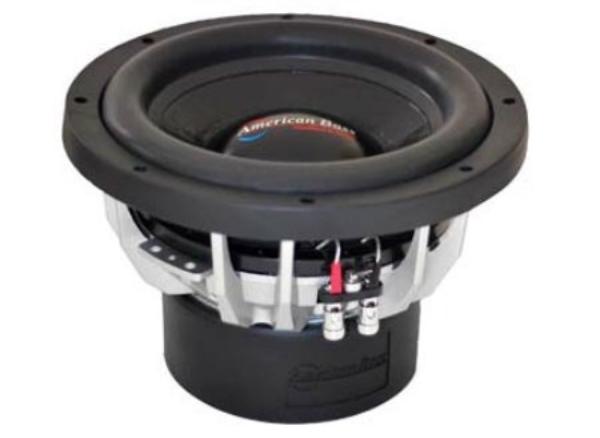

American Bass TNT 1244
American Bass TNT 1244
Model

American Bass TNT 1244

Rating
DIAM
12"
FS(Hz)
33.5
VAS(l)
37.7
QTS
0.5
PWR(W)
1200
SPL(dB)
85.9
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
33.5
Vas(l)
37.7
Qts
0.5
Qms
4.6
Qes
0.561
Bl(Tm)
11.5
Mms(gr)
230
Cms(mm/N)
0.098
Rms(kg/s)
10.524
Le(mH)
0
Re(Ohm)
1.5
Sd(sq.mm)
53090
Vd(l)
0.8
X-max(mm)
15
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.9
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
288
Mounting Depth (mm)
170
Magnet Diameter (mm)
162

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
