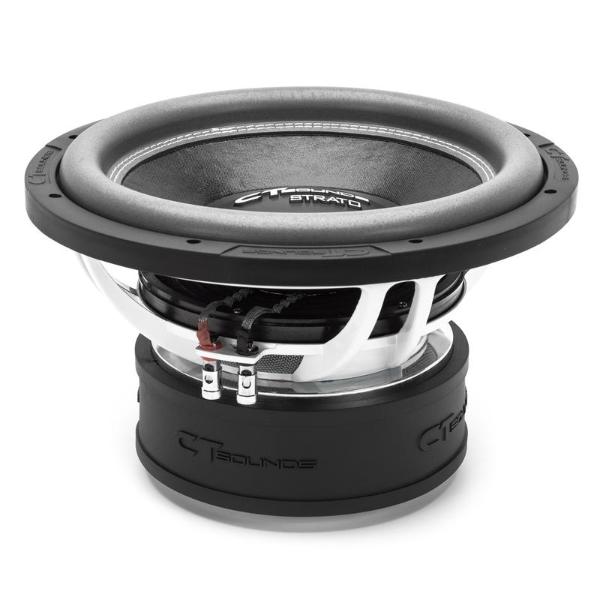

CT Sounds STRATO 12 D1
CT Sounds STRATO 12 D1
Model

CT Sounds STRATO 12 D1

Rating
DIAM
12"
FS(Hz)
39.3
VAS(l)
23.7
QTS
0.59
PWR(W)
1600
SPL(dB)
85.1
IMP(Ohm)
1x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
39.3
Vas(l)
23.7
Qts
0.592
Qms
4.962
Qes
0.672
Bl(Tm)
0
Cms(mm/N)
0.063
Rms(kg/s)
12.954
Le(mH)
0
Mms(gr)
260
Vd(l)
0.669
Sd(sq.mm)
51471
X-max(mm)
13
X-mech(mm)
0
Re(Ohm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
1600
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.1
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
5.1
Total Diameter (mm)
0
Cutout Diameter (mm)
285
Mounting Depth (mm)
173
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6
