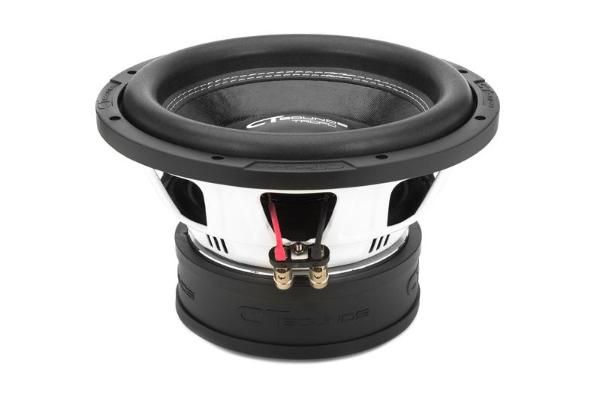

CT Sounds TROPO 10 D4
CT Sounds TROPO 10 D4
Model

CT Sounds TROPO 10 D4

Rating
DIAM
10"
FS(Hz)
40.8
VAS(l)
13.7
QTS
0.5
PWR(W)
900
SPL(dB)
83.9
IMP(Ohm)
4x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
40.8
Vas(l)
13.7
Qts
0.502
Qms
3.764
Qes
0.579
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
13
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
900
RMS Power(W.)
450
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.9
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
2.8
Total Diameter (mm)
0
Cutout Diameter (mm)
229
Mounting Depth (mm)
150
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
