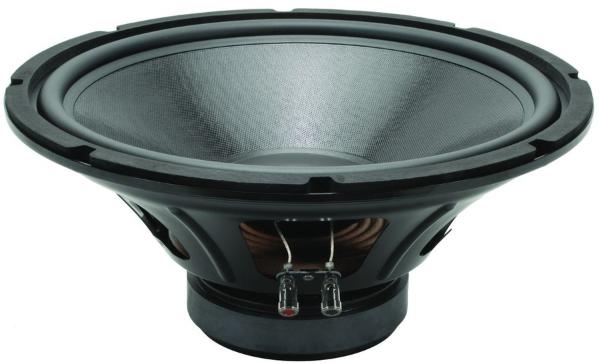

Dayton Audio DCS385-4
Dayton Audio DCS385-4
Model

Dayton Audio DCS385-4

Rating
DIAM
15"
FS(Hz)
17.5
VAS(l)
311
QTS
0.39
PWR(W)
600
SPL(dB)
87.8
IMP(Ohm)
4x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
17.5
Vas(l)
311
Qts
0.39
Qms
5.27
Qes
0.42
Bl(Tm)
15.4
Cms(mm/N)
0.303
Rms(kg/s)
5.696
Le(mH)
0
Mms(gr)
273
Vd(l)
0.8
Sd(sq.mm)
85010
X-max(mm)
9
X-mech(mm)
0
Re(Ohm)
3.3

General Parameters

Diameter (inch)
15
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.8
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
350
Mounting Depth (mm)
186
Magnet Diameter (mm)
156

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
