Model

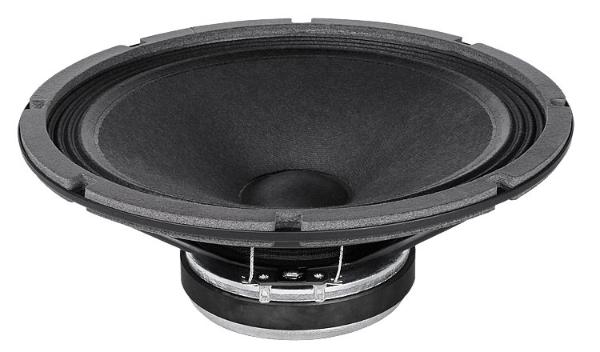

FaitalPRO 10FE200-4
Rating
DIAM
10"
FS(Hz)
55
VAS(l)
53
QTS
0.52
PWR(W)
300
SPL(dB)
94.3
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
55
Vas(l)
53
Qts
0.52
Qms
9
Qes
0.5
Bl(Tm)
7.2
Mms(gr)
25
Cms(mm/N)
0.338
Rms(kg/s)
0.95
Le(mH)
0.3
Re(Ohm)
3
Sd(sq.mm)
33251
Vd(l)
0.002
X-max(mm)
5
X-mech(mm)
10
General Parameters
Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
1.7
Sensitivity(dB) 1-W
94.3
Sensitivity(dB) 2.8-V
98.6
Mounting Information
Speaker Displacement (l)
0.6
Total Diameter (mm)
257
Cutout Diameter (mm)
232
Mounting Depth (mm)
94
Magnet Diameter (mm)
115
Optimum Enclosures
Enclosures
BP6P, Vented
