Model

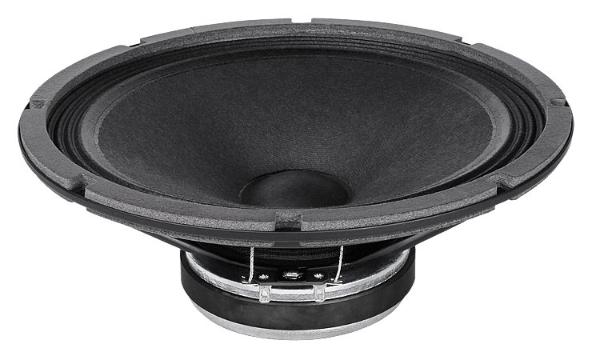

FaitalPRO 10FE200-8
Rating
DIAM
10"
FS(Hz)
55
VAS(l)
53.4
QTS
0.7
PWR(W)
300
SPL(dB)
92.6
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
55
Vas(l)
53.4
Qts
0.7
Qms
11.3
Qes
0.74
Bl(Tm)
8.2
Mms(gr)
25
Cms(mm/N)
0.34
Rms(kg/s)
0.75
Le(mH)
0.42
Re(Ohm)
5.9
Sd(sq.mm)
33278
Vd(l)
0.156
X-max(mm)
5
X-mech(mm)
10
General Parameters
Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.16
Sensitivity(dB) 1-W
92.6
Sensitivity(dB) 2.8-V
94
Mounting Information
Speaker Displacement (l)
0.6
Total Diameter (mm)
257
Cutout Diameter (mm)
232
Mounting Depth (mm)
94
Magnet Diameter (mm)
115
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
