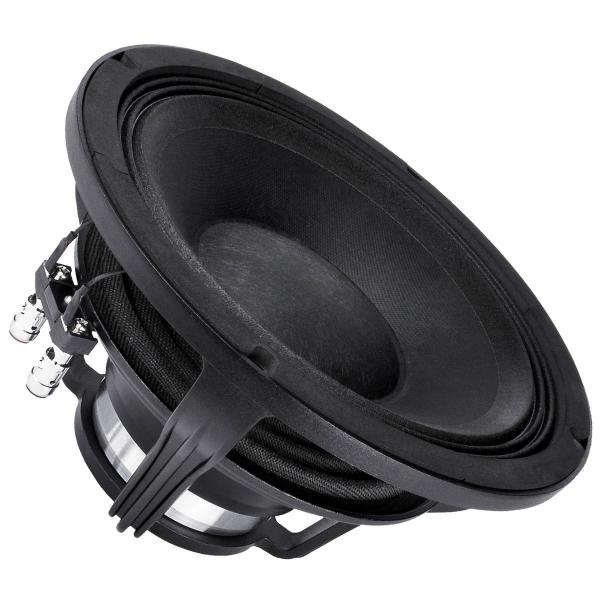

FaitalPRO 10FH500-8
FaitalPRO 10FH500-8
Model

FaitalPRO 10FH500-8

Rating
DIAM
10"
FS(Hz)
60
VAS(l)
22.9
QTS
0.26
PWR(W)
1000
SPL(dB)
94.3
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
60
Vas(l)
22.9
Qts
0.26
Qms
3.3
Qes
0.28
Bl(Tm)
18
Mms(gr)
47
Cms(mm/N)
0.15
Rms(kg/s)
5.4
Le(mH)
0.85
Re(Ohm)
5.1
Sd(sq.mm)
32800
Vd(l)
0.246
X-max(mm)
8
X-mech(mm)
13

General Parameters

Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.7
Sensitivity(dB) 1-W
94.3
Sensitivity(dB) 2.8-V
96.3

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
261
Cutout Diameter (mm)
230
Mounting Depth (mm)
130
Magnet Diameter (mm)
140

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
