Model

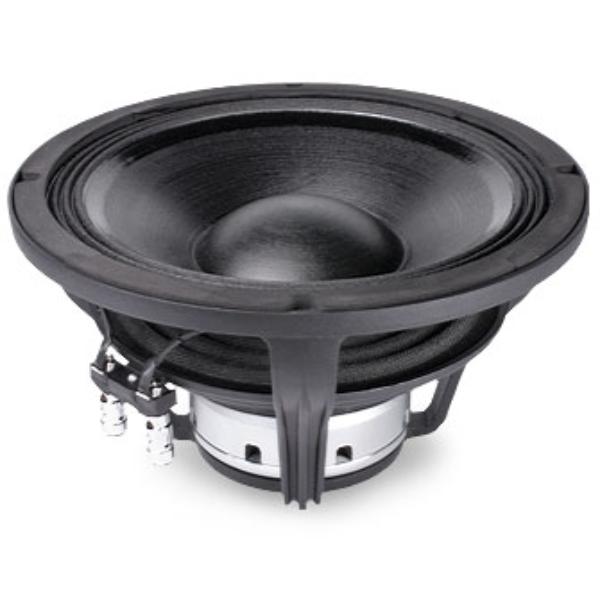

FaitalPRO 10FH520-8
Rating
DIAM
10"
FS(Hz)
60
VAS(l)
20.5
QTS
0.29
PWR(W)
1200
SPL(dB)
93.5
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
60
Vas(l)
20.5
Qts
0.29
Qms
11.1
Qes
0.3
Bl(Tm)
18
Mms(gr)
50
Cms(mm/N)
0.14
Rms(kg/s)
1.7
Le(mH)
0
Re(Ohm)
5.1
Sd(sq.mm)
32100
Vd(l)
0.233
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
93.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.7
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
129
Magnet Diameter (mm)
106
Optimum Enclosures
Enclosures
BP6P, Vented
