Model

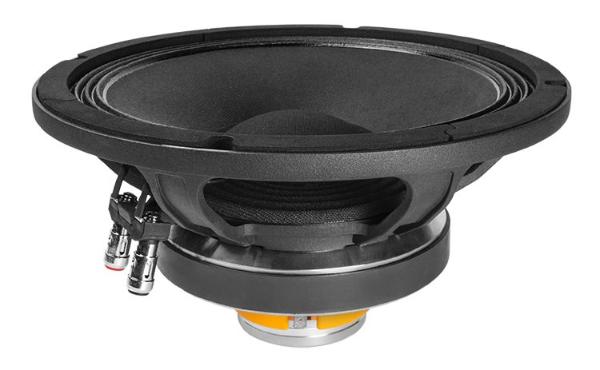

FaitalPRO 10HX230
Rating
DIAM
10"
FS(Hz)
65
VAS(l)
25.8
QTS
0.35
PWR(W)
500
SPL(dB)
94.7
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
65
Vas(l)
25.8
Qts
0.35
Qms
5.8
Qes
0.37
Bl(Tm)
14.1
Mms(gr)
34
Cms(mm/N)
0.18
Rms(kg/s)
2.39
Le(mH)
0.54
Re(Ohm)
5.3
Sd(sq.mm)
32100
Vd(l)
0.238
X-max(mm)
7
X-mech(mm)
15
General Parameters
Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.85
Sensitivity(dB) 1-W
94.7
Sensitivity(dB) 2.8-V
96.5
Mounting Information
Speaker Displacement (l)
1.3
Total Diameter (mm)
261
Cutout Diameter (mm)
230
Mounting Depth (mm)
137
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
