Model

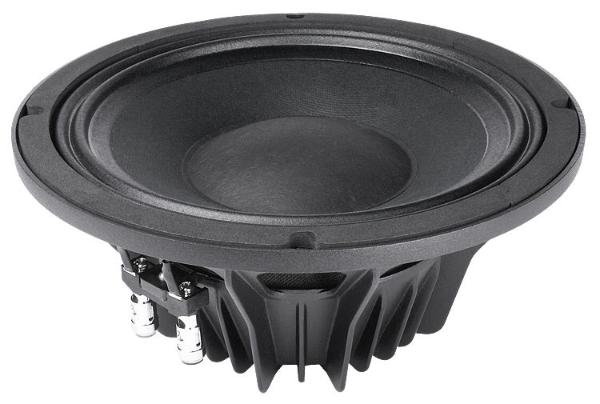

FaitalPRO 10PR300-16
Rating
DIAM
10"
FS(Hz)
65
VAS(l)
26.7
QTS
0.46
PWR(W)
600
SPL(dB)
93.5
IMP(Ohm)
16x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
65
Vas(l)
26.7
Qts
0.46
Qms
5.8
Qes
0.5
Bl(Tm)
18
Mms(gr)
33
Cms(mm/N)
0.181
Rms(kg/s)
2.331
Le(mH)
0.85
Re(Ohm)
12
Sd(sq.mm)
32200
Vd(l)
0.158
X-max(mm)
5
X-mech(mm)
14
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
16
Reference efficiency η0(%)
1.41
Sensitivity(dB) 1-W
93.5
Sensitivity(dB) 2.8-V
91.7
Mounting Information
Speaker Displacement (l)
1.3
Total Diameter (mm)
261
Cutout Diameter (mm)
232
Mounting Depth (mm)
115
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
