Model

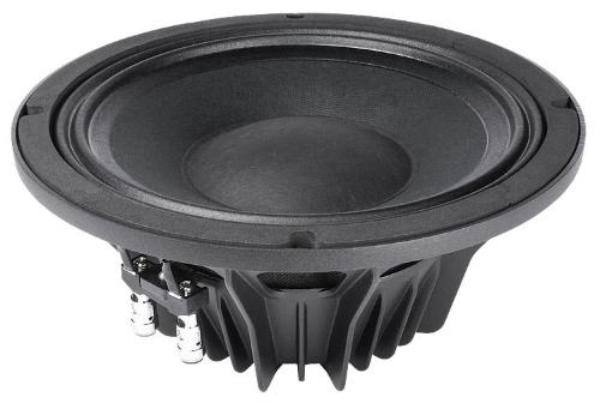

FaitalPRO 10PR300-4
Rating
DIAM
10"
FS(Hz)
50
VAS(l)
43.3
QTS
0.24
PWR(W)
600
SPL(dB)
95.2
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
50
Vas(l)
43.3
Qts
0.24
Qms
5.8
Qes
0.25
Bl(Tm)
11.8
Mms(gr)
34
Cms(mm/N)
0.295
Rms(kg/s)
1.863
Le(mH)
0.45
Re(Ohm)
3.2
Sd(sq.mm)
32173
Vd(l)
0.158
X-max(mm)
5
X-mech(mm)
14
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
2.09
Sensitivity(dB) 1-W
95.2
Sensitivity(dB) 2.8-V
99.2
Mounting Information
Speaker Displacement (l)
1.3
Total Diameter (mm)
261
Cutout Diameter (mm)
232
Mounting Depth (mm)
115
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
