Model

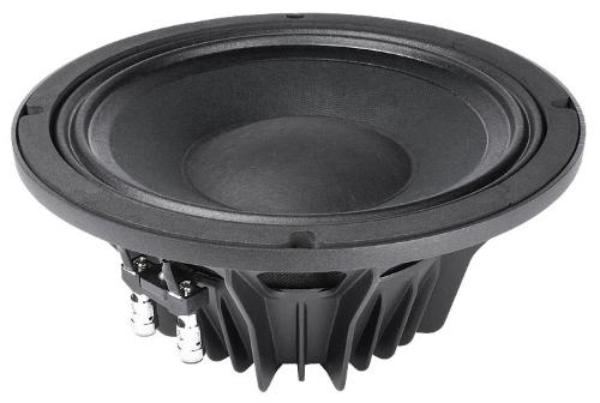

FaitalPRO 10PR300-8
Rating
DIAM
10"
FS(Hz)
60
VAS(l)
36.7
QTS
0.27
PWR(W)
600
SPL(dB)
96.2
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
60
Vas(l)
36.7
Qts
0.27
Qms
5.8
Qes
0.29
Bl(Tm)
14.1
Mms(gr)
28
Cms(mm/N)
0.25
Rms(kg/s)
1.83
Le(mH)
0.6
Re(Ohm)
5.4
Sd(sq.mm)
32173
Vd(l)
0.158
X-max(mm)
5
X-mech(mm)
14
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.64
Sensitivity(dB) 1-W
96.2
Sensitivity(dB) 2.8-V
97.9
Mounting Information
Speaker Displacement (l)
1.3
Total Diameter (mm)
261
Cutout Diameter (mm)
232
Mounting Depth (mm)
115
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
