Model

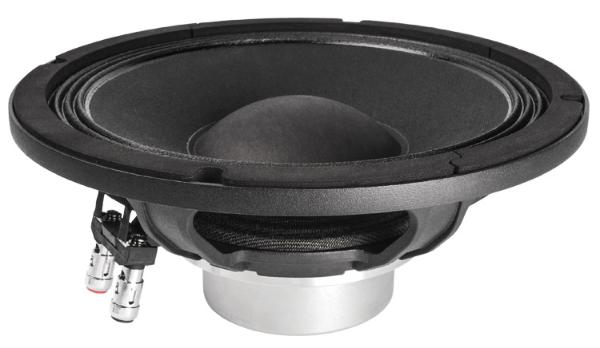

FaitalPRO 10PR320
Rating
DIAM
10"
FS(Hz)
48
VAS(l)
45.9
QTS
0.29
PWR(W)
600
SPL(dB)
94
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
48
Vas(l)
45.9
Qts
0.29
Qms
4.6
Qes
0.31
Bl(Tm)
13.5
Mms(gr)
36
Cms(mm/N)
0.31
Rms(kg/s)
2.328
Le(mH)
0
Re(Ohm)
5.3
Sd(sq.mm)
32100
Vd(l)
0.237
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
94
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
228
Mounting Depth (mm)
53
Magnet Diameter (mm)
95
Optimum Enclosures
Enclosures
Vented, BP6
