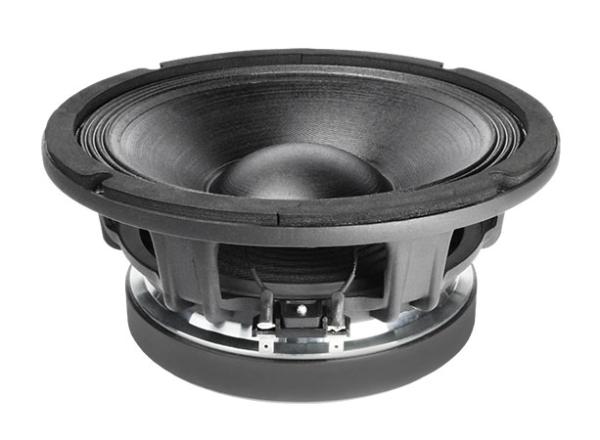

FaitalPRO 10PR410
FaitalPRO 10PR410
Model

FaitalPRO 10PR410

Rating
DIAM
10"
FS(Hz)
60
VAS(l)
27.6
QTS
0.21
PWR(W)
600
SPL(dB)
96.2
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
60
Vas(l)
27.6
Qts
0.21
Qms
8.7
Qes
0.22
Bl(Tm)
18.5
Mms(gr)
37
Cms(mm/N)
0.19
Rms(kg/s)
1.59
Le(mH)
0.6
Re(Ohm)
5.5
Sd(sq.mm)
31780
Vd(l)
0.143
X-max(mm)
5
X-mech(mm)
12

General Parameters

Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.61
Sensitivity(dB) 1-W
96.2
Sensitivity(dB) 2.8-V
97.9

Mounting Information

Speaker Displacement (l)
2
Total Diameter (mm)
261
Cutout Diameter (mm)
228
Mounting Depth (mm)
120
Magnet Diameter (mm)
191

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
