Model

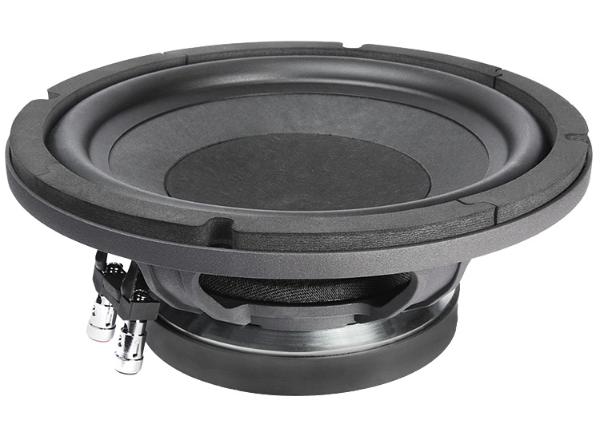

FaitalPRO 10RS350
Rating
DIAM
10"
FS(Hz)
40
VAS(l)
38.5
QTS
0.37
PWR(W)
600
SPL(dB)
89.7
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
38.5
Qts
0.37
Qms
5.2
Qes
0.4
Bl(Tm)
14
Mms(gr)
59
Cms(mm/N)
0.268
Rms(kg/s)
2.852
Le(mH)
0
Re(Ohm)
5.3
Sd(sq.mm)
32000
Vd(l)
0.236
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.4
Total Diameter (mm)
0
Cutout Diameter (mm)
228
Mounting Depth (mm)
100
Magnet Diameter (mm)
156
Optimum Enclosures
Enclosures
Vented, BP6
