Model

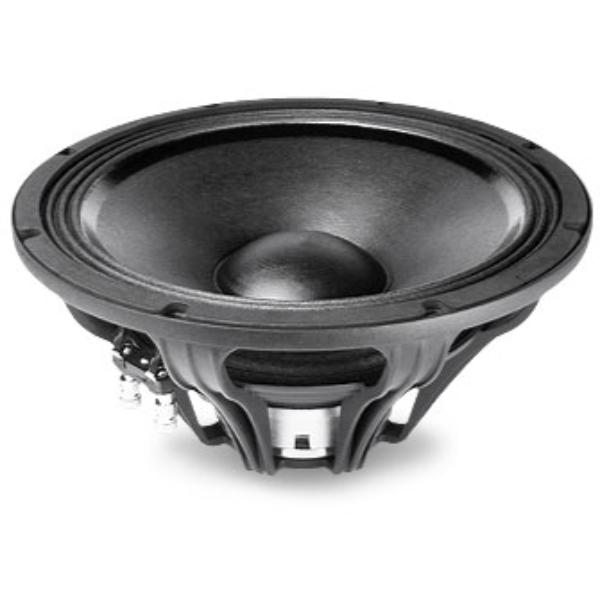

FaitalPRO 12FH520
Rating
DIAM
12"
FS(Hz)
50
VAS(l)
64.2
QTS
0.29
PWR(W)
1200
SPL(dB)
96.1
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
50
Vas(l)
64.2
Qts
0.29
Qms
11.1
Qes
0.3
Bl(Tm)
17.3
Mms(gr)
56
Cms(mm/N)
0.18
Rms(kg/s)
1.58
Le(mH)
0
Re(Ohm)
5.1
Sd(sq.mm)
50000
Vd(l)
0.363
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
96.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.4
Total Diameter (mm)
0
Cutout Diameter (mm)
283
Mounting Depth (mm)
143
Magnet Diameter (mm)
128
Optimum Enclosures
Enclosures
Vented, BP6
