Model

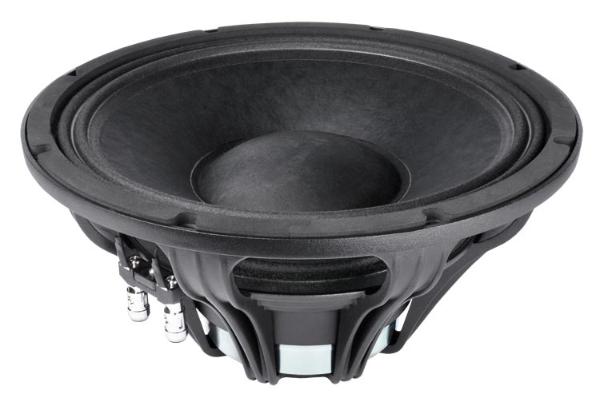

FaitalPRO 12HP1020
Rating
DIAM
12"
FS(Hz)
55
VAS(l)
33.7
QTS
0.27
PWR(W)
1400
SPL(dB)
97
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
55
Vas(l)
33.7
Qts
0.27
Qms
9.4
Qes
0.28
Bl(Tm)
24.3
Mms(gr)
86
Cms(mm/N)
0.09
Rms(kg/s)
3.16
Le(mH)
1.1
Re(Ohm)
5.5
Sd(sq.mm)
49400
Vd(l)
0.445
X-max(mm)
9
X-mech(mm)
16
General Parameters
Diameter (inch)
12
Max Power(W.)
1400
RMS Power(W.)
700
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.93
Sensitivity(dB) 1-W
97
Sensitivity(dB) 2.8-V
96.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
316
Cutout Diameter (mm)
284
Mounting Depth (mm)
156
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
