Model

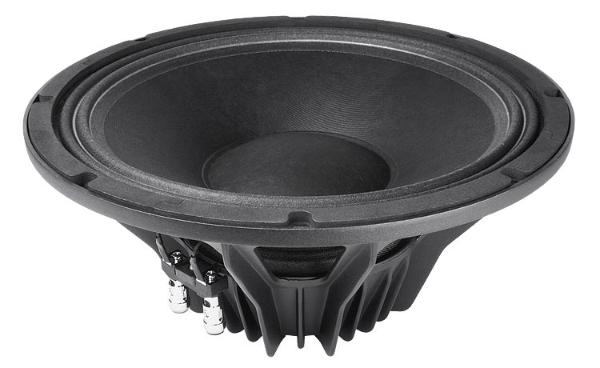

FaitalPRO 12PR300-16
Rating
DIAM
12"
FS(Hz)
50
VAS(l)
76.7
QTS
0.52
PWR(W)
600
SPL(dB)
94.3
IMP(Ohm)
16x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
50
Vas(l)
76.7
Qts
0.52
Qms
4.8
Qes
0.55
Bl(Tm)
17.5
Mms(gr)
45
Cms(mm/N)
0.22
Rms(kg/s)
2.92
Le(mH)
0.98
Re(Ohm)
12.1
Sd(sq.mm)
48900
Vd(l)
0.241
X-max(mm)
5
X-mech(mm)
14
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
16
Reference efficiency η0(%)
1.68
Sensitivity(dB) 1-W
94.3
Sensitivity(dB) 2.8-V
92.5
Mounting Information
Speaker Displacement (l)
1.9
Total Diameter (mm)
315
Cutout Diameter (mm)
281
Mounting Depth (mm)
128
Magnet Diameter (mm)
122
Optimum Enclosures
Enclosures
Vented, BP6
