Model

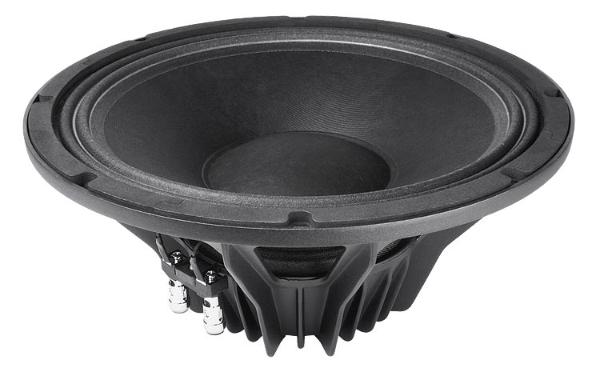

FaitalPRO 12PR300-8
Rating
DIAM
12"
FS(Hz)
50
VAS(l)
79.2
QTS
0.36
PWR(W)
600
SPL(dB)
96.1
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
50
Vas(l)
79.2
Qts
0.36
Qms
9.9
Qes
0.37
Bl(Tm)
14.1
Mms(gr)
43
Cms(mm/N)
0.23
Rms(kg/s)
1.38
Le(mH)
0.42
Re(Ohm)
5.4
Sd(sq.mm)
49274
Vd(l)
0.242
X-max(mm)
5
X-mech(mm)
15
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.58
Sensitivity(dB) 1-W
96.1
Sensitivity(dB) 2.8-V
97.8
Mounting Information
Speaker Displacement (l)
1.9
Total Diameter (mm)
315
Cutout Diameter (mm)
281
Mounting Depth (mm)
141
Magnet Diameter (mm)
122
Optimum Enclosures
Enclosures
Vented, BP6
