Model

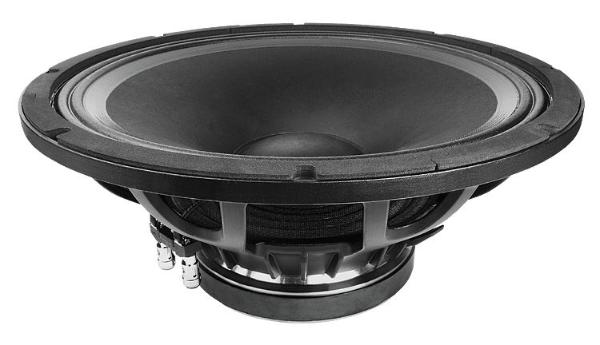

FaitalPRO 15FH510
Rating
DIAM
15"
FS(Hz)
35
VAS(l)
173.8
QTS
0.27
PWR(W)
1000
SPL(dB)
96.1
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
173.8
Qts
0.27
Qms
10.7
Qes
0.277
Bl(Tm)
21
Mms(gr)
108
Cms(mm/N)
0.19
Rms(kg/s)
2.2
Le(mH)
1.4
Re(Ohm)
5.1
Sd(sq.mm)
80000
Vd(l)
0.744
X-max(mm)
9
X-mech(mm)
16
General Parameters
Diameter (inch)
15
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.59
Sensitivity(dB) 1-W
96.1
Sensitivity(dB) 2.8-V
98.1
Mounting Information
Speaker Displacement (l)
4.1
Total Diameter (mm)
393
Cutout Diameter (mm)
354
Mounting Depth (mm)
180
Magnet Diameter (mm)
191
Optimum Enclosures
Enclosures
Vented, BP6
