Model

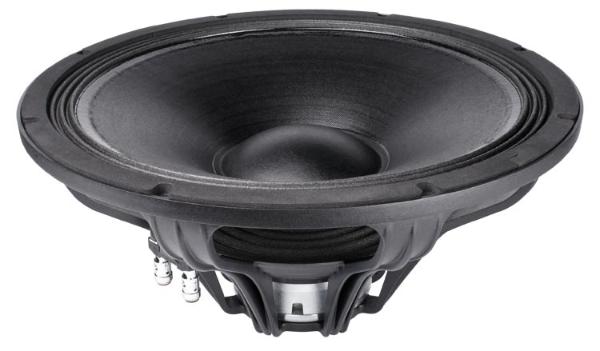

FaitalPRO 15FH520-16
Rating
DIAM
15"
FS(Hz)
42
VAS(l)
125.8
QTS
0.62
PWR(W)
1200
SPL(dB)
93.4
IMP(Ohm)
16x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
42
Vas(l)
125.8
Qts
0.62
Qms
13.5
Qes
0.65
Bl(Tm)
23.5
Mms(gr)
107
Cms(mm/N)
0.134
Rms(kg/s)
2.096
Le(mH)
0.89
Re(Ohm)
12.7
Sd(sq.mm)
81300
Vd(l)
0.732
X-max(mm)
9
X-mech(mm)
16
General Parameters
Diameter (inch)
15
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
16
Reference efficiency η0(%)
1.38
Sensitivity(dB) 1-W
93.4
Sensitivity(dB) 2.8-V
91.4
Mounting Information
Speaker Displacement (l)
3.4
Total Diameter (mm)
393
Cutout Diameter (mm)
354
Mounting Depth (mm)
168
Magnet Diameter (mm)
129
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
