Model

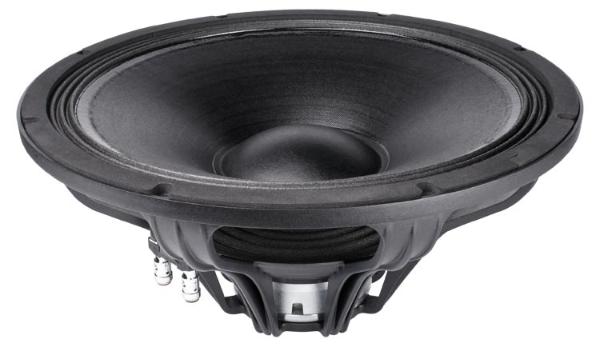

FaitalPRO 15FH520-4
Rating
DIAM
15"
FS(Hz)
38
VAS(l)
146.2
QTS
0.34
PWR(W)
1200
SPL(dB)
95.4
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
38
Vas(l)
146.2
Qts
0.34
Qms
9
Qes
0.353
Bl(Tm)
14.3
Mms(gr)
115
Cms(mm/N)
0.153
Rms(kg/s)
3.043
Le(mH)
0.68
Re(Ohm)
2.6
Sd(sq.mm)
81300
Vd(l)
0.711
X-max(mm)
9
X-mech(mm)
16
General Parameters
Diameter (inch)
15
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
2.19
Sensitivity(dB) 1-W
95.4
Sensitivity(dB) 2.8-V
100.2
Mounting Information
Speaker Displacement (l)
3.4
Total Diameter (mm)
393
Cutout Diameter (mm)
354
Mounting Depth (mm)
168
Magnet Diameter (mm)
129
Optimum Enclosures
Enclosures
Vented, BP6
