Model

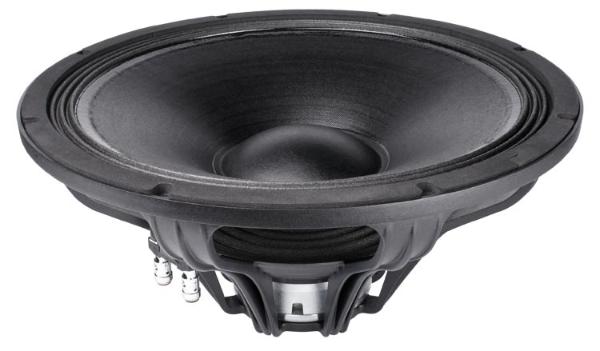

FaitalPRO 15FH520-8
Rating
DIAM
15"
FS(Hz)
38
VAS(l)
156.6
QTS
0.4
PWR(W)
1200
SPL(dB)
95
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
38
Vas(l)
156.6
Qts
0.4
Qms
10.1
Qes
0.416
Bl(Tm)
18.4
Mms(gr)
105
Cms(mm/N)
0.16
Rms(kg/s)
2.48
Le(mH)
0.89
Re(Ohm)
5.6
Sd(sq.mm)
81300
Vd(l)
0.711
X-max(mm)
9
X-mech(mm)
16
General Parameters
Diameter (inch)
15
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.99
Sensitivity(dB) 1-W
95
Sensitivity(dB) 2.8-V
96.5
Mounting Information
Speaker Displacement (l)
3.4
Total Diameter (mm)
393
Cutout Diameter (mm)
354
Mounting Depth (mm)
168
Magnet Diameter (mm)
129
Optimum Enclosures
Enclosures
Vented, BP6
