Model

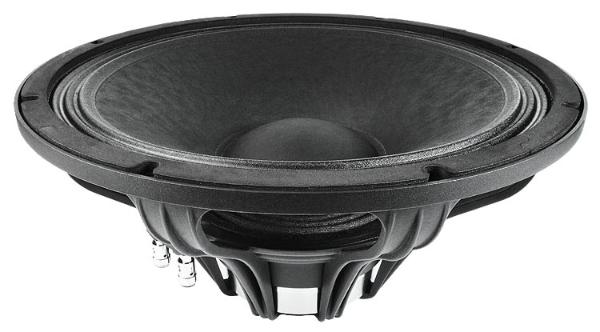

FaitalPRO 15HP1020
Rating
DIAM
15"
FS(Hz)
40
VAS(l)
109.6
QTS
0.27
PWR(W)
1400
SPL(dB)
95.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
109.6
Qts
0.27
Qms
10.2
Qes
0.277
Bl(Tm)
24.3
Mms(gr)
118
Cms(mm/N)
0.134
Rms(kg/s)
2.908
Le(mH)
0
Re(Ohm)
5.5
Sd(sq.mm)
75941
Vd(l)
0.683
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1400
RMS Power(W.)
700
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
95.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
3.9
Total Diameter (mm)
0
Cutout Diameter (mm)
354
Mounting Depth (mm)
168
Magnet Diameter (mm)
129
Optimum Enclosures
Enclosures
Vented, BP6
