Model

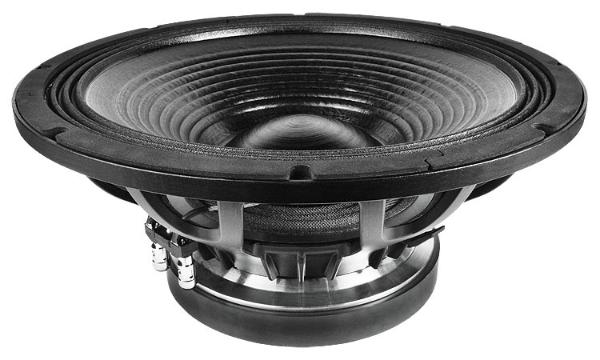

FaitalPRO 15HP1030-8
Rating
DIAM
15"
FS(Hz)
40
VAS(l)
82.68
QTS
0.34
PWR(W)
2000
SPL(dB)
93.6
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
82.7
Qts
0.34
Qms
11.8
Qes
0.35
Bl(Tm)
24.3
Mms(gr)
165
Cms(mm/N)
0.096
Rms(kg/s)
3.51
Le(mH)
1.4
Re(Ohm)
5
Sd(sq.mm)
77927
Vd(l)
0.966
X-max(mm)
12
X-mech(mm)
23
General Parameters
Diameter (inch)
15
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.46
Sensitivity(dB) 1-W
93.6
Sensitivity(dB) 2.8-V
95.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
393
Cutout Diameter (mm)
352
Mounting Depth (mm)
174
Magnet Diameter (mm)
220
Optimum Enclosures
Enclosures
BP6P, Vented
