Model

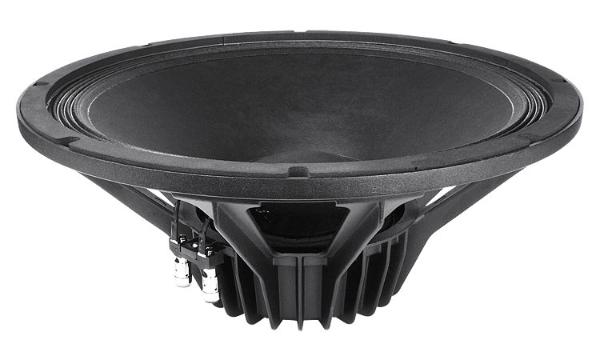

FaitalPRO 15PR400-4
Rating
DIAM
15"
FS(Hz)
35
VAS(l)
223
QTS
0.32
PWR(W)
800
SPL(dB)
96.4
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
223
Qts
0.32
Qms
6
Qes
0.338
Bl(Tm)
13.6
Mms(gr)
85
Cms(mm/N)
0.243
Rms(kg/s)
3.12
Le(mH)
0.6
Re(Ohm)
3.3
Sd(sq.mm)
80500
Vd(l)
0.463
X-max(mm)
6
X-mech(mm)
15
General Parameters
Diameter (inch)
15
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
2.73
Sensitivity(dB) 1-W
96.4
Sensitivity(dB) 2.8-V
100.2
Mounting Information
Speaker Displacement (l)
3.7
Total Diameter (mm)
393
Cutout Diameter (mm)
354
Mounting Depth (mm)
152
Magnet Diameter (mm)
150
Optimum Enclosures
Enclosures
Vented, BP6
