Model

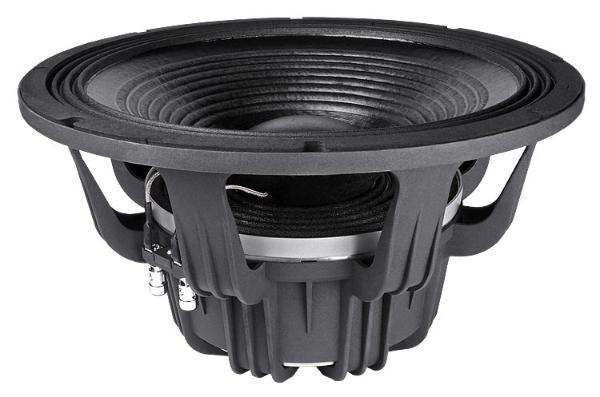

FaitalPRO 15XL1400-8
Rating
DIAM
15"
FS(Hz)
38
VAS(l)
79.7
QTS
0.33
PWR(W)
2800
SPL(dB)
92.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
38
Vas(l)
79.7
Qts
0.33
Qms
10.4
Qes
0.341
Bl(Tm)
26.8
Mms(gr)
190
Cms(mm/N)
0.092
Rms(kg/s)
4.362
Le(mH)
1.6
Re(Ohm)
5.4
Sd(sq.mm)
78000
Vd(l)
1.008
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2800
RMS Power(W.)
1400
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.24
Sensitivity(dB) 1-W
92.9
Sensitivity(dB) 2.8-V
94.6
Mounting Information
Speaker Displacement (l)
6
Total Diameter (mm)
393
Cutout Diameter (mm)
354
Mounting Depth (mm)
217
Magnet Diameter (mm)
200
Optimum Enclosures
Enclosures
Vented, BP6
